Smart EV Charger

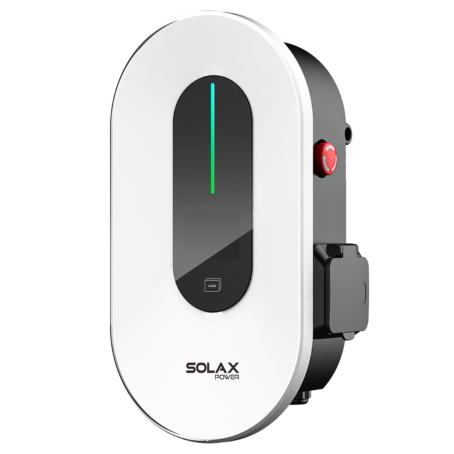

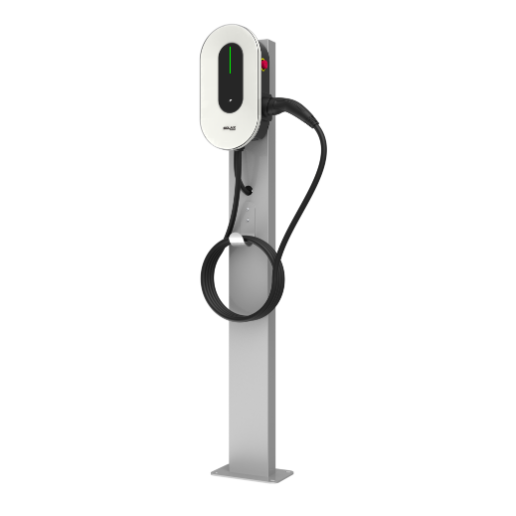

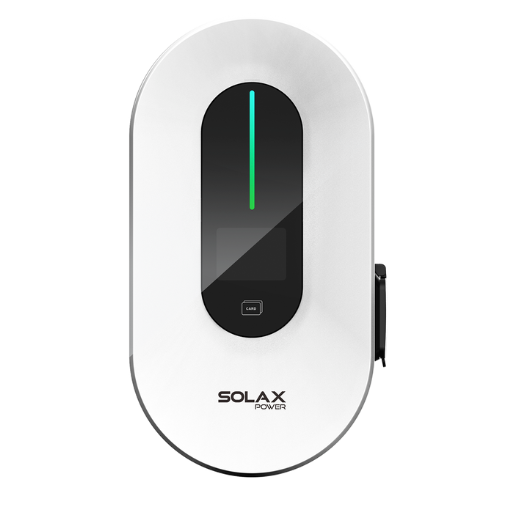

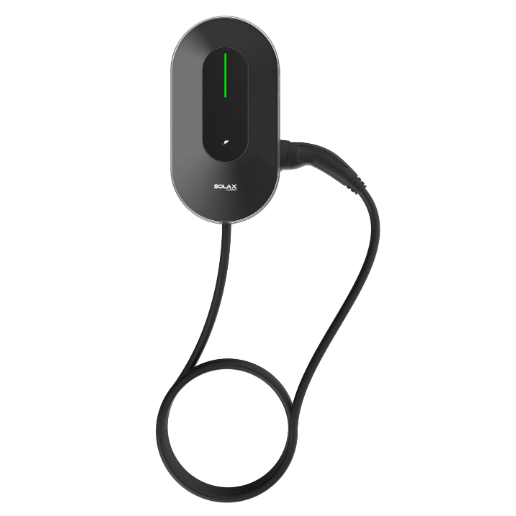

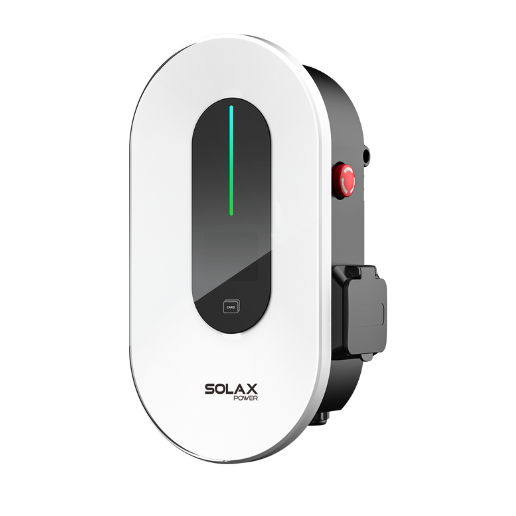

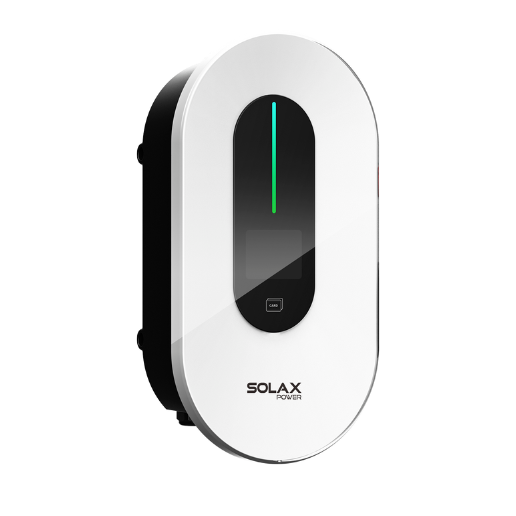

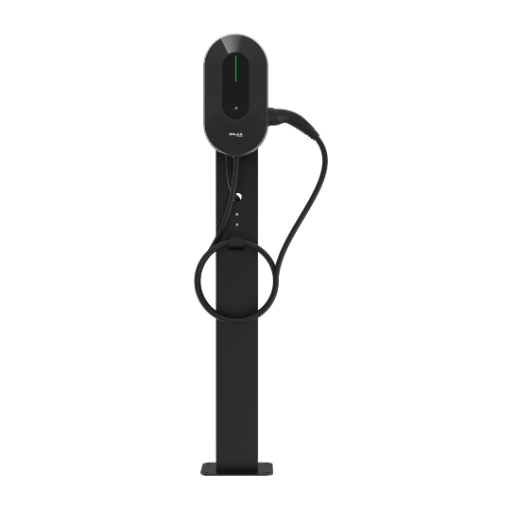

Smart EV Charger G2
-
A1-HAC-8K /A1-HAC-10K /A1-HAC-12K
The SolaX A1-HAC Smart EV Charger G2 is designed for residential EV charging across North America. With selectable NACS or Type 1 plug options, it supports flexible compatibility with a wide range of electric vehicles. Its streamlined wall-mounted design suits both indoor and outdoor installation, while RFID access management and smart APP control make everyday charging simple.
Product Advantage
Built for intelligent home energy management, the A1-HAC Series integrates with both new and existing solar PV systems and can prioritize up to 100% green energy for EV charging. Smart dynamic load balancing helps manage household power demand efficiently, while CCID 20 mA current leakage protection provides added charging safety.
High Efficiency
Capable of 100% green energy
Integrated with new and existing PV system
Assured Safety
Current leakage protection (CCID 20mA)
Smart dynamic load balance control
Intelligent Design
Smart RFID management function
Smart APP remote control
Flexible Adaptability
Selectable Type1 Plug or NACS Plug
Easy indoor and outdoor installation
Supports multiple communication protocols
Product Parameters
-
A1-HAC-8K-
AC NOMINAL INPUT
Voltage 208 /240 V
Frequency 50 Hz / 60 Hz -
AC NOMINAL OUTPUT
Power 7.6 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / RS 485 x 2 -
GENERAL
Charging outlet SAE J1772 / NACS Cooling method Natural cooling Application site Indoor / Outdoor Net weight SAE J1772: 16.5 lb (7.5 kg)
NACS: 13.7 lb (6.2 kg)
Dimensions (W x H x D) 8.1" x15.4'' x5.5"(206 x390x139 mm)
-
-
A1-HAC-10K
-
AC NOMINAL INPUT
Voltage 208 /240 V
Frequency 50 Hz / 60 Hz -
AC NOMINAL OUTPUT
Power 9.6 kW -
INTERFACE
Communication Interface Wi-Fi / Ethernet / RS 485 x 2 -
GENERAL
Charging outlet SAE J1772 / NACS Cooling method Natural cooling Application site Indoor / Outdoor Net weight SAE J1772: 16.5 lb (7.5 kg)
NACS: 13.7 lb (6.2 kg)
Dimensions (W x H x D) 8.1" x15.4'' x5.5"(206 x390x139 mm)
-
-
A1-HAC-12K
-
AC NOMINAL INPUT
Voltage 208 /240 V
Frequency 50 Hz / 60 Hz -
AC NOMINAL OUTPUT
Power 7.6 kW -
INTERFACE & COMMUNICATION
Communication Interface Wi-Fi / Ethernet / RS 485 x 2 -
GENERAL
Charging outlet SAE J1772 / NACS Cooling method Natural cooling Application site Indoor / Outdoor Net weight SAE J1772: 16.5 lb (8 kg)
NACS: 13.7 lb (6.5 kg)
Dimensions (W x H x D) 8.1" x15.4'' x5.5"(206 x390x139 mm)
-
