Single Phase Inverter
A1-MICRO 1 IN 1 A1-Micro 300W / 400W / 450W / 500W / 600W
Key Features
Flexible Adaptability
  • Check Support Zero Export Control
  • Check Support micro-grid solution, AC coupling solution
  • Check Support 1-phase microinverter integration into 3-phase power grids
High Efficiency
  • Check Max. 600VA output power
  • Check Max. 20A DC input current
  • Check Single MPPT, small size, light weigh
Assured Safety
  • Check Built-in industrial grade PLC module
  • Check Safety protection relay integrated
  • Check IP67 protection class
Intelligent Design
  • Check Reactive power control
  • Check Rapid shutdown function
  • Check Easy to install and maintain
A1-Microinverter 1 in 1

X Power Difference

Introducing the SolaX A1-Micro series - the apex of microinverter technology. With an exceptional capacity of up to 600 VA, these leading 1-in-1 microinverters provide unrivaled power efficiency and dependability. Engineered for high-power modules, the A1-Micro series boasts advanced MPPT technology, managing substantial input currents and exceptional output power. Integrated PLC communication ensures seamless monitoring and control. Ideal for both residential and commercial solar applications, the A1-Micro series others cost-effective solutions and integrates effortlessly with the SolaX Hybrid system and AC coupled systems.

Max. PV input voltage 60V
Max. PV input current 12A
Start-up voltage 20V
No. of MPP trackers/Strings per MPP tracker 1/1
Dimensions (W*H*D) 206*178*34mm
Net weight 2.5kg
Max. PV input voltage 60V
Max. PV input current 15A
Start-up voltage 20V
No. of MPP trackers/Strings per MPP tracker 1/1
Dimensions (W*H*D) 206*178*34mm
Net weight 2.5kg
Max. PV input voltage 60V
Max. PV input current 16A
Start-up voltage 20V
No. of MPP trackers/Strings per MPP tracker 1/1
Dimensions (W*H*D) 206*178*34mm
Net weight 2.5kg
Max. PV input voltage 60V
Max. PV input current 18A-20A
Start-up voltage 20V
No. of MPP trackers/Strings per MPP tracker 1/1
Dimensions (W*H*D) 206*178*34mm
Net weight 2.5kg
Documents
        • File Language Format Size Last Updated
          A1-Microinverter 1 in 1 Datasheet-EN English pdf 835474 10/17/2024
        • File Language Format Size Last Updated
          A1-Micro 1 in 1 Installation Manual-Global English pdf 8238261 04/06/2024
        • File Language Format Size Last Updated
          A1-Micro 1 in 1 Series User Manual-EN English pdf 15034884 04/06/2024

    • No Company Info Found!

Other Products
solar power battery backup

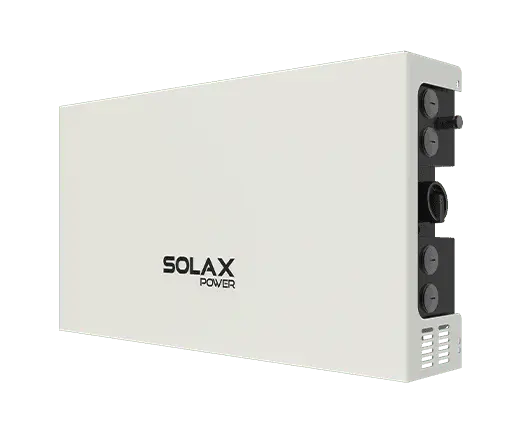

A1 HYBRID G2
solar power battery backup
A1 AC
solar battery storage system

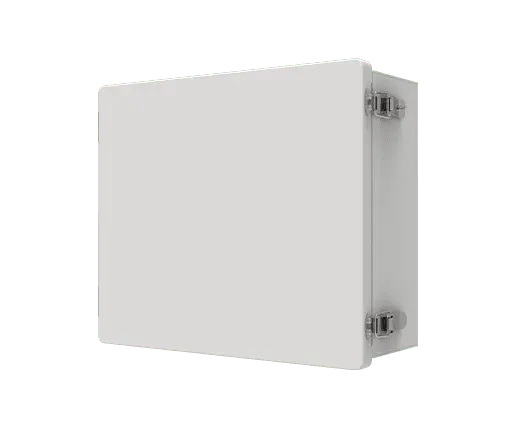

SWITCH BOX
solar battery bank

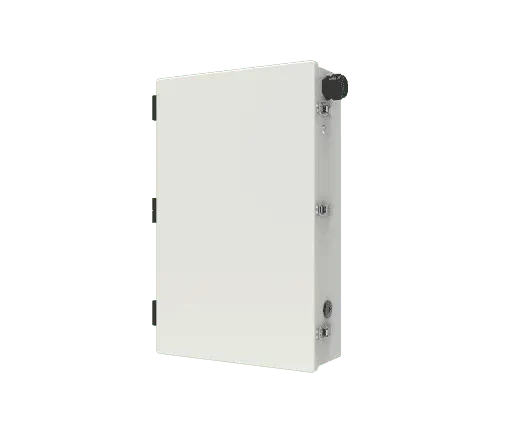

A1-BI
solar power battery bank

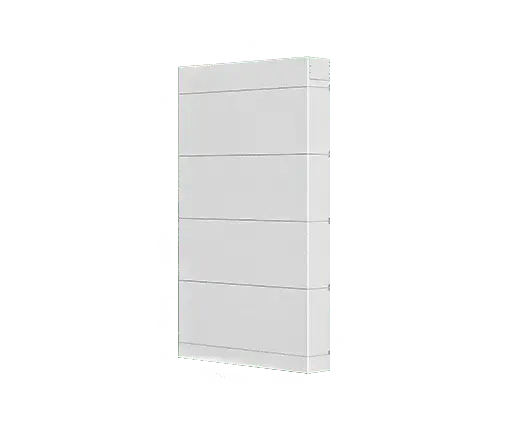

T-BAT-SYS-HV-5.0
battery bank for home

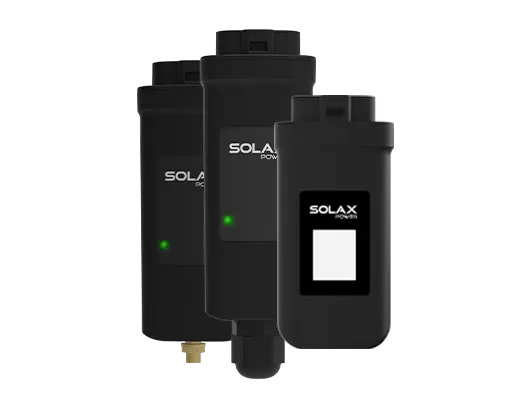

Pocket Dongle
solar panel battery bank

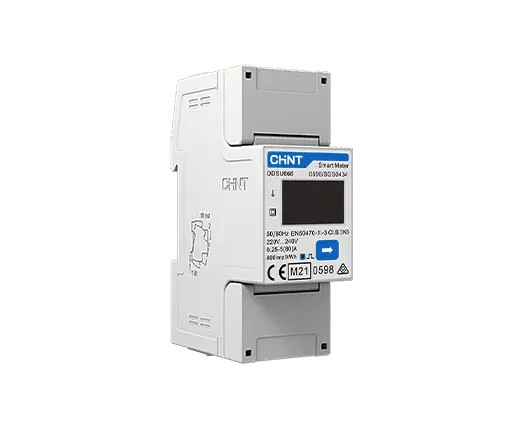

Energy Meter
